Data Sheet
AD8027/AD8028

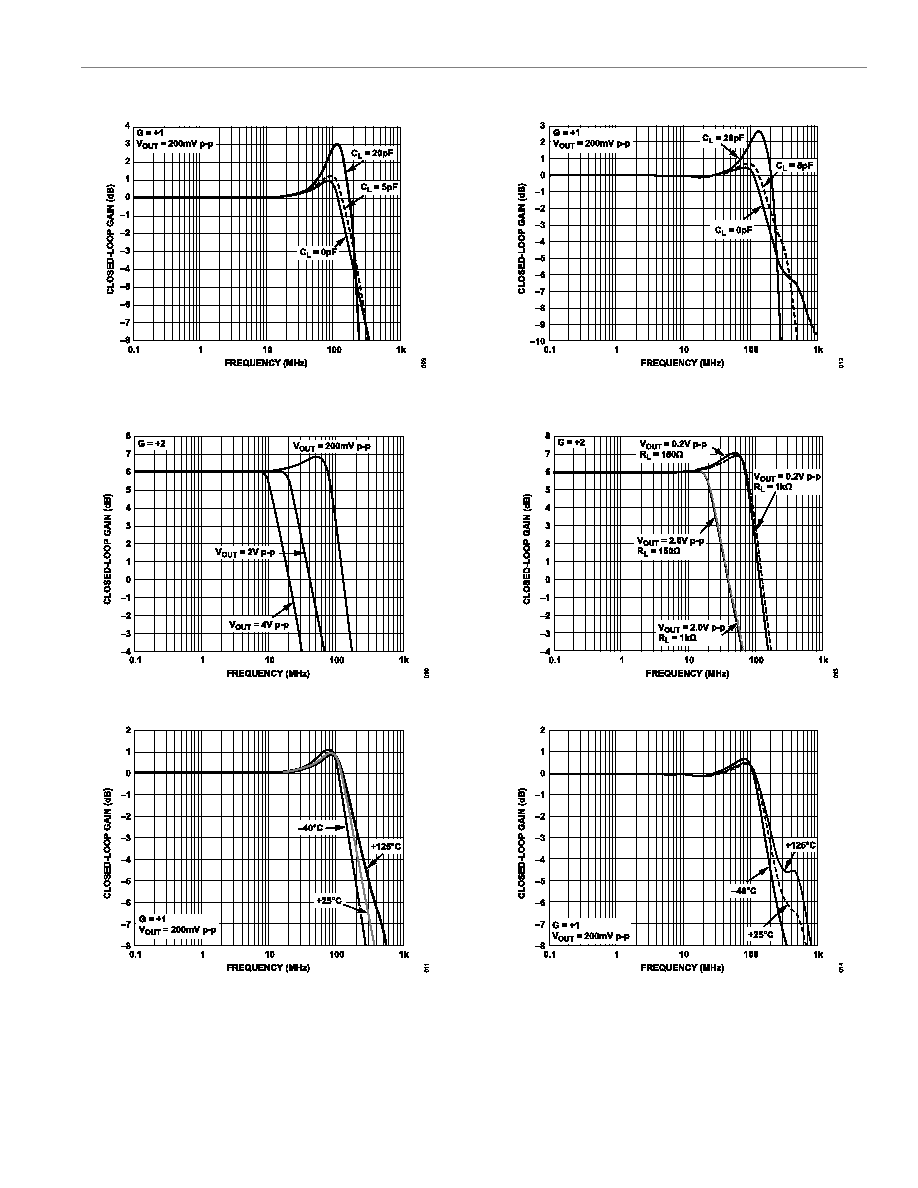

TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. E | 11 of 27
Figure 14. AD8027 Small Signal Frequency Response for Various CLOAD
Values
Figure 15. Frequency Response for Various Output Amplitudes
Figure 16. AD8027 Small Signal Frequency Response vs. Frequency for
Various Temperatures
Figure 17. AD8028 Small Signal Frequency Response for Various CLOAD
Values
Figure 18. Small Signal Frequency Response for Various RLOAD Values
Figure 19. AD8028 Small Signal Frequency Response vs. Frequency for
Various Temperatures
