Data Sheet
AD8027/AD8028
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. E | 14 of 27

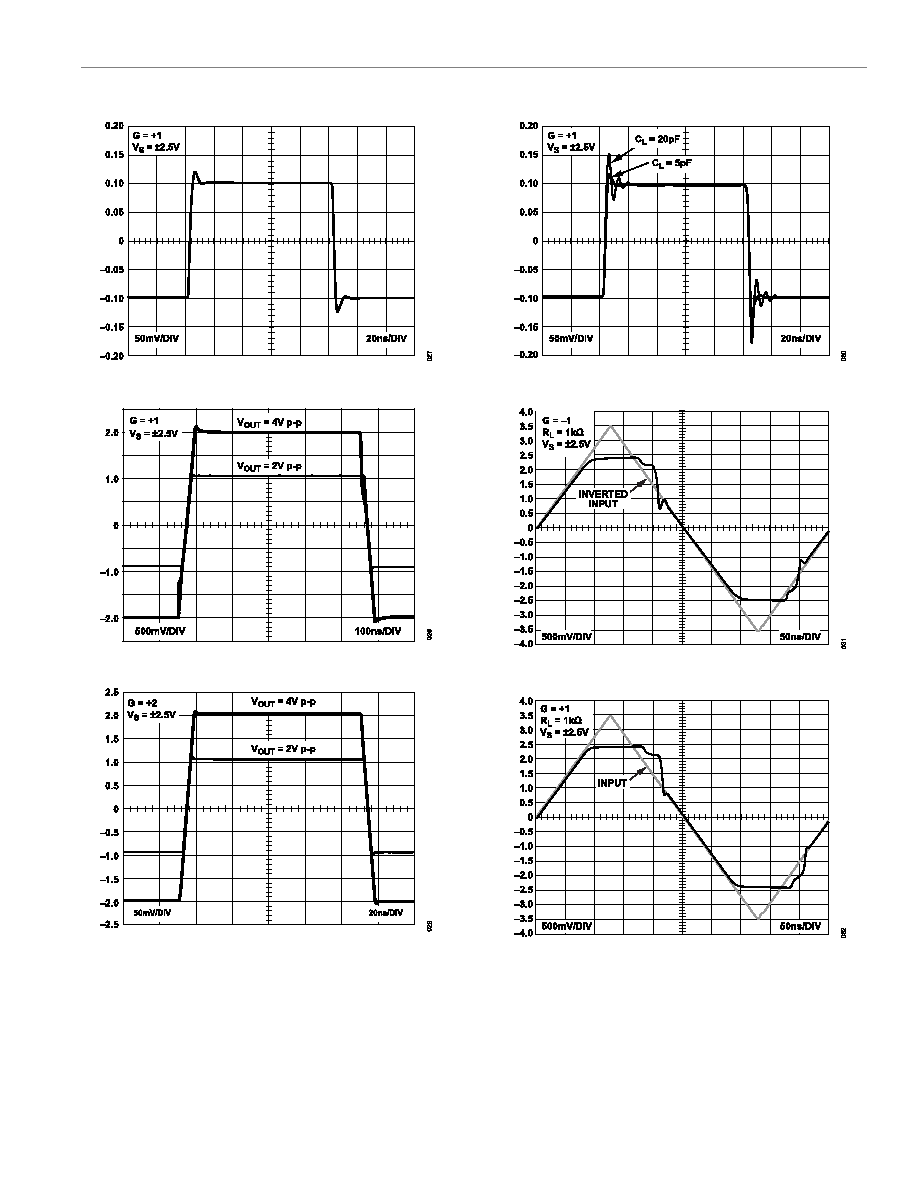

Figure 32. Small Signal Transient Response
Figure 33. Large Signal Transient Response, G = +1
Figure 34. Large Signal Transient Response, G = +2
Figure 35. Small Signal Transient Response with Capacitive Load
Figure 36. Overdrive Recovery, G = −1
Figure 37. Overdrive Recovery, G = +1
