Data Sheet
AD8027/AD8028
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. E | 13 of 27

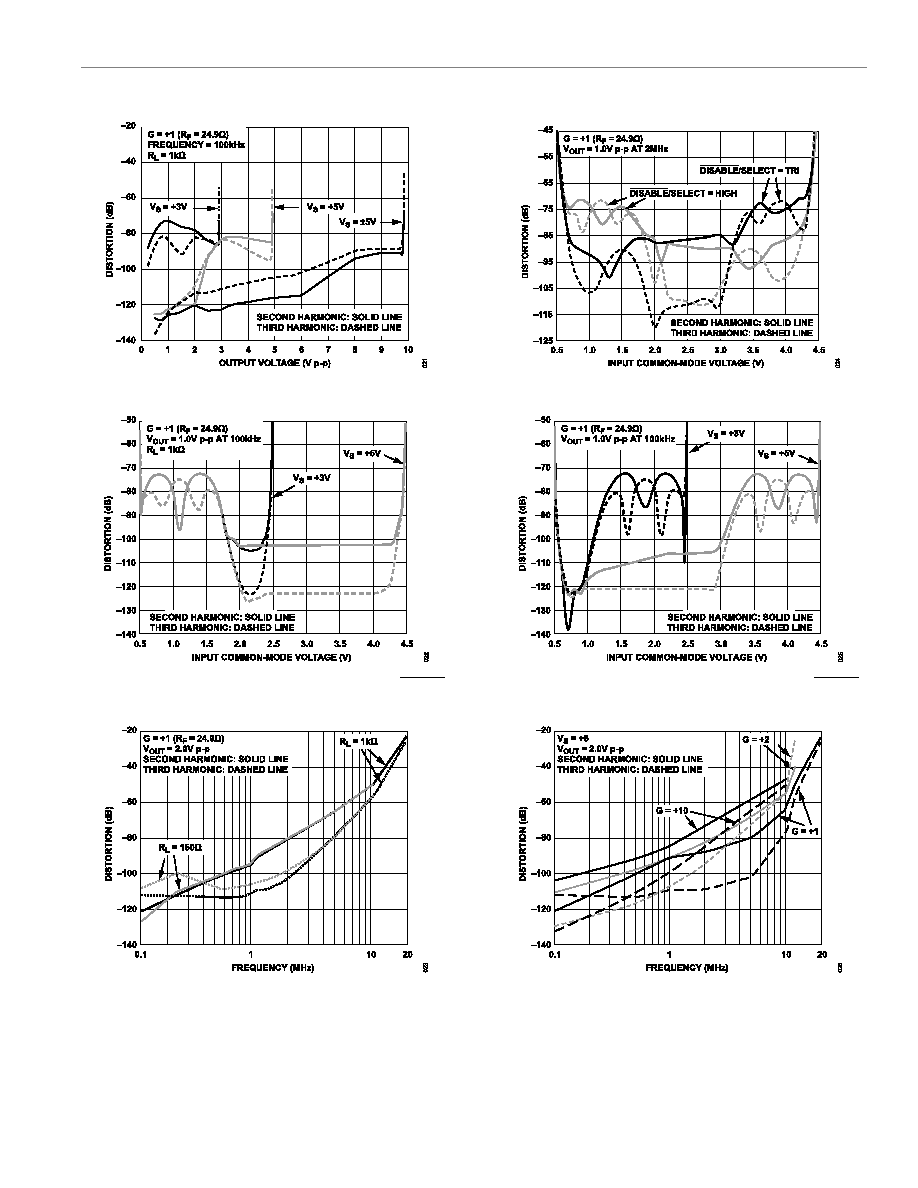

Figure 26. Harmonic Distortion vs. Output Voltage
Figure 27. Harmonic Distortion vs. Input Common-Mode Voltage, DISABLE/
SELECT = High
Figure 28. Harmonic Distortion vs. Frequency and Load
Figure 29. Harmonic Distortion vs. Input Common-Mode Voltage, VS = 5 V
Figure 30. Harmonic Distortion vs. Input Common-Mode Voltage, DISABLE/
SELECT = Trisate or Open
Figure 31. Harmonic Distortion vs. Frequency and Gain
