Data Sheet
AD8027/AD8028

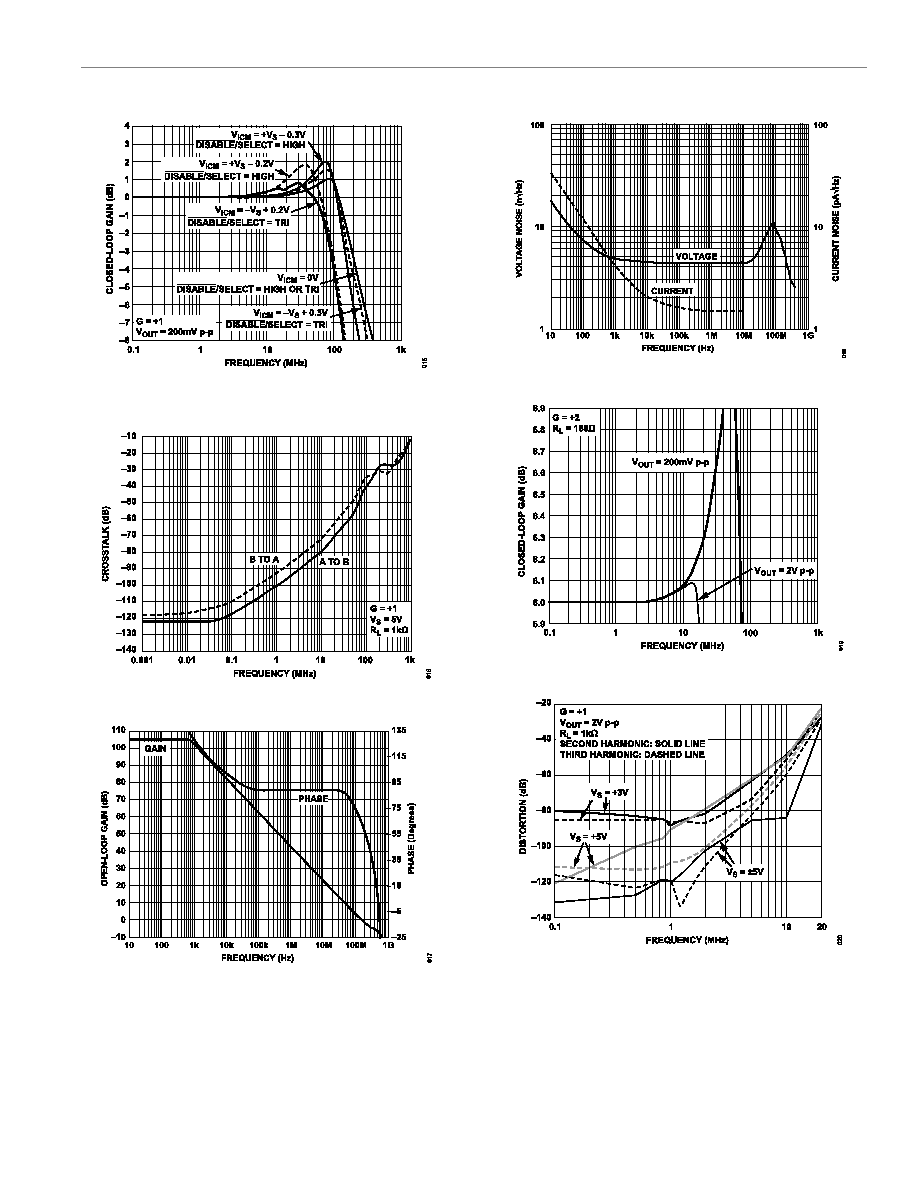

TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. E | 12 of 27
Figure 20. Small Signal Frequency Response vs. Frequency for Various Input
Common-Mode Voltages
Figure 21. AD8028 Crosstalk, Output to Output (see Figure 59)
Figure 22. Open-Loop Gain and Phase vs. Frequency
Figure 23. Voltage and Current Noise vs. Frequency
Figure 24. 0.1 dB Flatness Frequency Response
Figure 25. Harmonic Distortion vs. Frequency and Supply Voltage
