QPD1025L

1500 W, 65 V, 1.0

– 1.1 GHz, GaN RF Input-Matched Transistor

Datasheet Rev. B

│ Subject to change without notice

- 16 of 18 -

www.qorvo.com

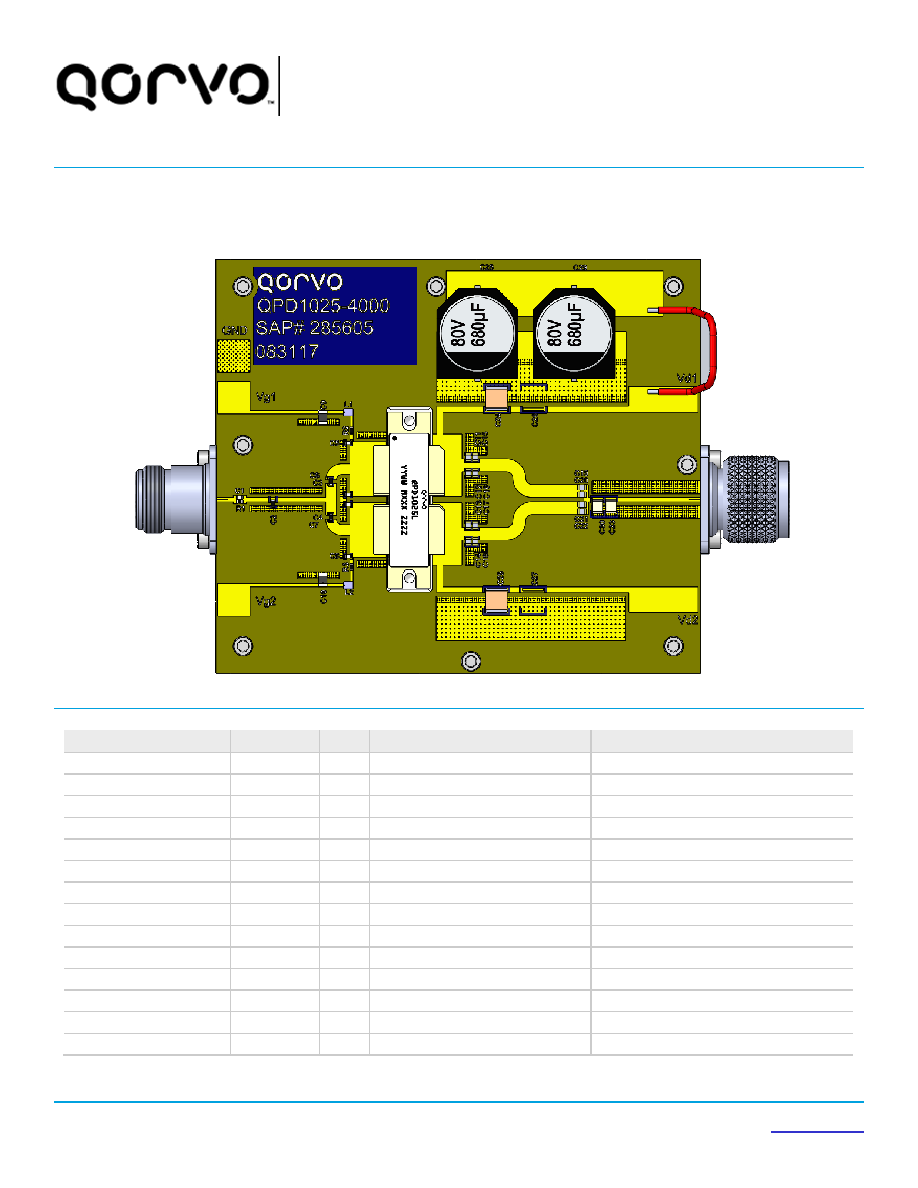

1.0

Notes

:

1.

PCB material is RO4350B 0.020” thick, 2 oz. copper each side.

2.

The two gates could be tied together or (optionally) adjusted independently.

1.0

– 1.1 GHz Application Circuit – Bill of Material

Reference Design

Value

Qty

Manufacturer

Part Number

C15,C16,C17,C18

8.2 pF

4

American Technical Ceramics

600F8R2BT250T

C1

10 pF

1

American Technical Ceramics

600S100FT250XT

C2,C3,C4

6.8 PF

3

American Technical Ceramics

600S6R8BT250T

C9,C10

4.7 uF

2

Murata Electronics

GRM31CR71H475KA12L

C19,C20,C21,C22

7.5 pF

4

American Technical Ceramics

600F7R5BT250XT

C26,C27

10 uF

2

TDK Singapore (Pte) Ltd

C5750X7S2A106M230KB

C5,C6,C7,C8

9.1 pF

4

American Technical Ceramics

600S9R1BT250XT

C28,C29

680 uF

2

Vishay Americas Inc

MAL215099708E3

C11,C12,C13,C14

6.8 pF

4

American Technical Ceramics

600F6R8BT250XT

C23,C30

3.0 pF

2

American Technical Ceramics

800B3R0BT500XT

R1

100 Ohm

1

Panasonic Industrial Devices

Sales

ERJ-3EKF1000

R2,R3

10 Ohm

2

Vishay Dale Electronics

CRCW060310R0FKEA

L1,L2

110 nH

2

Coilcraft, Inc.

0805CS-111XJBC

Connectors

N-Type

2

Huber+Suhner, Inc.

1101055
