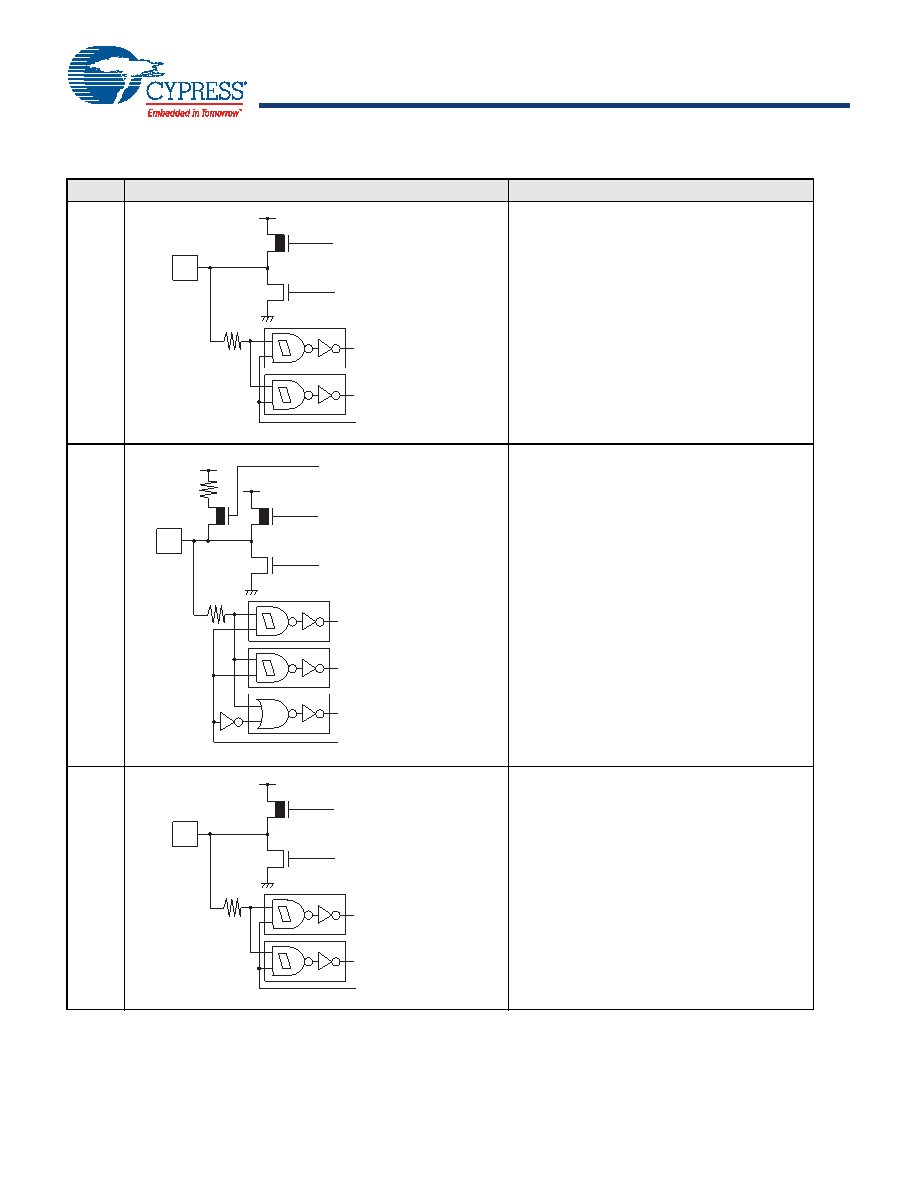

Document Number: 002-04498 Rev. *A

Page 20 of 92

MB90340E Series

(Continued)

Type

Circuit

Remarks



CMOS level output

(IOL = 4 mA, IOH  4 mA)



CMOS hysteresis input (with function to disconnect

input during standby)



Automotive input (with function to

disconnect input during standby)



CMOS level output

(IOL = 4 mA, IOH  4 mA)



CMOS hysteresis input (with function to disconnect

input during standby)



Automotive input (with function to

disconnect input during standby)



TTL input (with function to disconnect

input during standby)



Programmable pull-up resistor: 50 k



approx.



CMOS level output

(IOL = 3 mA, IOH  3 mA)



CMOS hysteresis input (with function to disconnect

input during standby)



Automotive input (with function to

disconnect input during standby)

CMOS hysteresis

input

Automotive input

Standby control for

input shutdown

Pout

Nout

P-ch

N-ch

Pull-up control

CMOS hysteresis

input

Automotive input

TTL input

Standby control for

input shutdown

Pout

Nout

P-ch

N-ch

CMOS hysteresis

input

Automotive input

Standby control for

input shutdown

Pout

Nout

N-ch

P-ch
