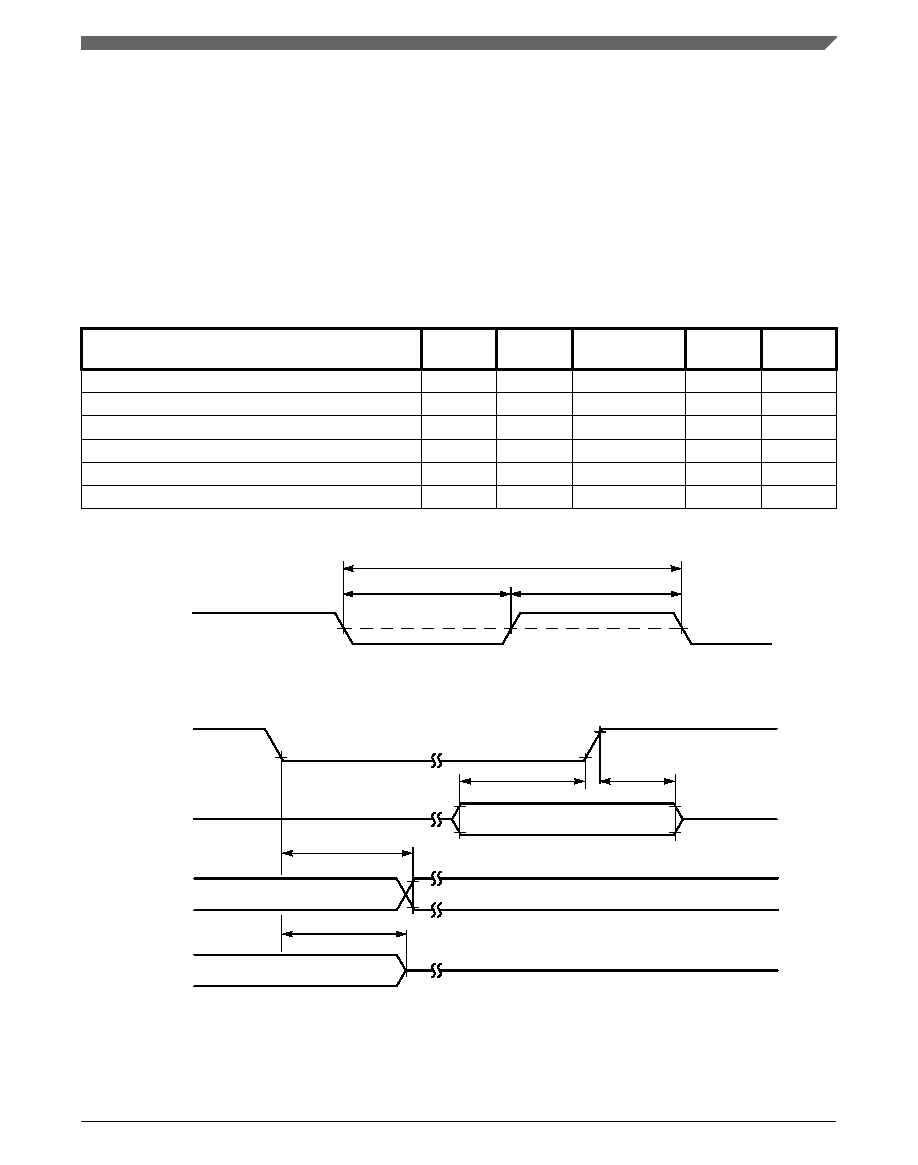

49 / 73 page  Peripheral operating requirements and behaviors 11.1 Core modules 11.1.1 JTAG timing Table 17. JTAG timing Characteristic Symbol Min Max Unit See Figure TCK frequency of operation fOP DC SYS_CLK/ 8 MHz Figure 7 TCK clock pulse width tPW 50 — ns Figure 7 TMS, TDI data set-up time tDS 5 — ns Figure 8 TMS, TDI data hold time tDH 5 — ns Figure 8 TCK low to TDO data valid tDV — 30 ns Figure 8 TCK low to TDO tri-state tTS — 30 ns Figure 8 TCK (Input) VM VIL VM = VIL + (VIH – VIL)/2 tPW 1/fOP tPW VM VIH Figure 7. Test clock input timing diagram Input Data Valid Output Data Valid tDS tDH tDV tTS TCK (Input) TDI (Input) TDO (Output) TDO (Output) TMS Figure 8. Test access port timing diagram 11 Peripheral operating requirements and behaviors MC56F81xxx, Rev. 1.1, 12/2020 NXP Semiconductors 49 |
|
