STM32U535NET6QTR Datasheet(PDF) 129 Page - STMicroelectronics |
|
|
|||||||||||||||||||||||||||||
STM32U535NET6QTR Datasheet(HTML) 129 Page - STMicroelectronics |
|
|

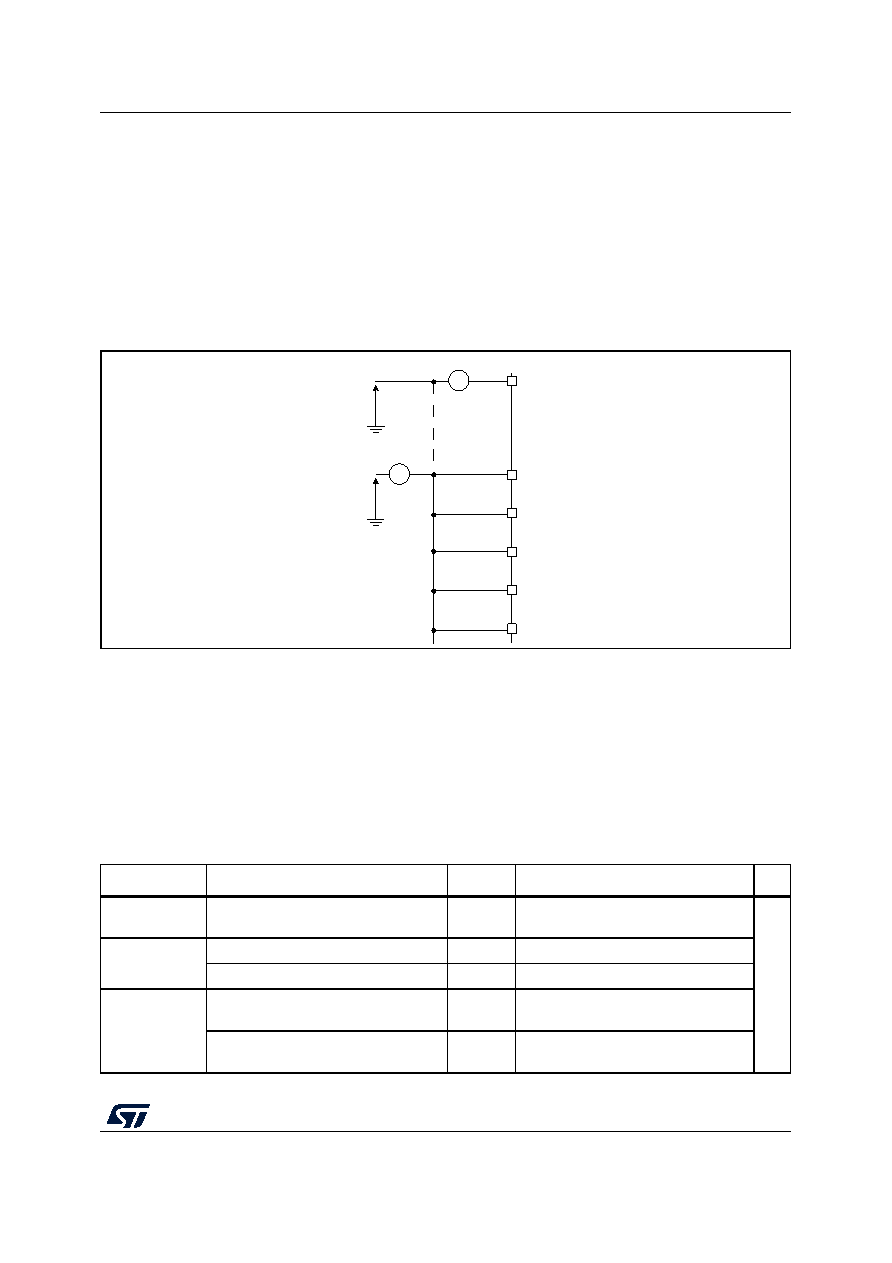

129 / 278 page  DS14217 Rev 1 129/278 STM32U535xx Electrical characteristics 253 Caution: Each power supply pair (such as VDD/VSS or VDDA/VSSA) must be decoupled with filtering ceramic capacitors as shown above. These capacitors must be placed as close as possible to, or below, the appropriate pins on the underside of the PCB to ensure the good functionality of the device. 5.1.7 Current consumption measurement The IDD parameters given in various tables in the next sections, represent the total MCU consumption including the current supplying VDD, VDDIO2, VDDA, VDDUSB, VBAT and VDDSMPS (if the device embeds the SMPS). Figure 25. Current consumption measurement 5.2 Absolute maximum ratings Stresses above the absolute maximum ratings listed in Table 29, Table 30 and Table 31 may cause permanent damage to the device. These are stress ratings only and the functional operation of the device at these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability. Device mission profile (application conditions) is compliant with JEDEC JESD47 qualification standard, extended mission profiles are available on demand. MSv62920V2 IDD_VBAT IDD VBAT VDD VDDA VDDUSB VDDSMPS VDDIO2 Table 29. Voltage characteristics(1)(2) Symbol Ratings Min Max Unit VDDX - VSS External main supply voltage (including VDDSMPS, VDDA, VDDUSB, VBAT, VREF+) -0.3 4.0 V VDDIOx(3) - VSS I/O supply when HSLV = 0 -0.3 4.0 I/O supply when HSLV = 1 -0.3 2.75 VIN(4) Input voltage on FT_xx pins except FT_c pins VSS - 0.3 Min (min (VDD, VDDA, VDDUSB, VDDIO2) + 4.0, 6.0)(5)(6) Input voltage on FT_t pins in VBAT mode VSS - 0.3 Min (min (VBAT, VDDA, VDDUSB, VDDIO2) + 4.0, 6.0) (5)(6) |
|
