Rev. F - 15 February, 2001

T89C51RD2

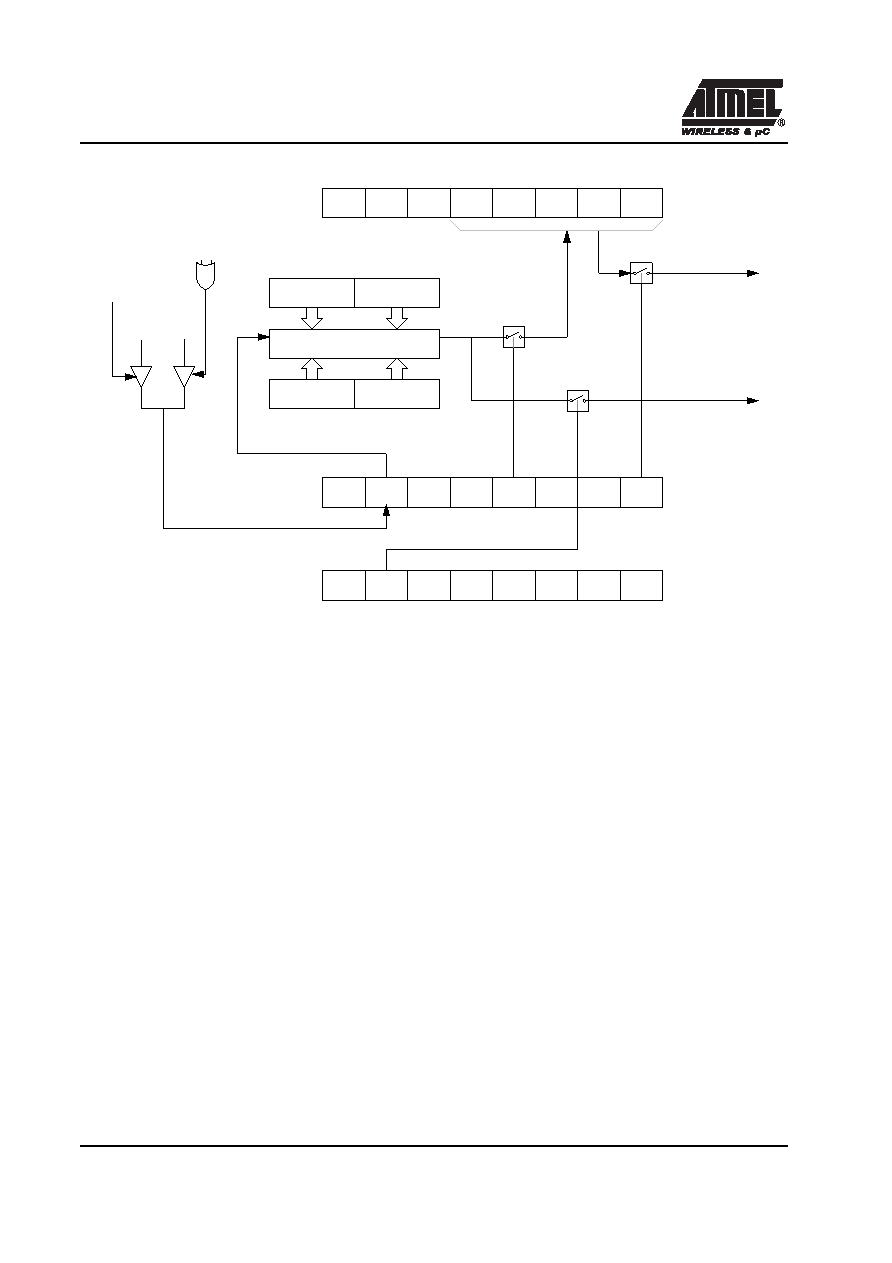

Figure 10. PCA Compare Mode and PCA Watchdog Timer

Before enabling ECOM bit, CCAPnL and CCAPnH should be set with a non zero value, otherwise an unwanted

match could happen. Writing to CCAPnH will set the ECOM bit.

Once ECOM set, writing CCAPnL will clear ECOM so that an unwanted match doesn’t occur while modifying

the compare value. Writing to CCAPnH will set ECOM. For this reason, user software should write CCAPnL first,

and then CCAPnH. Of course, the ECOM bit can still be controlled by accessing to CCAPMn register.

6.5.3. High Speed Output Mode

In this mode the CEX output (on port 1) associated with the PCA module will toggle each time a match occurs

between the PCA counter and the module's capture registers. To activate this mode the TOG, MAT, and ECOM

bits in the module's CCAPMn SFR must be set (See Figure 11).

A prior write must be done to CCAPnL and CCAPnH before writing the ECOMn bit.

CCAPnH

CCAPnL

ECOMn

CCAPMn, n = 0 to 4

0xDA to 0xDE

CAPNn MATn

TOGn PWMn ECCFn

CAPPn

16 bit comparator

Match

CCON

0xD8

PCA IT

Enable

PCA counter/timer

RESET *

CIDL

CPS1

CPS0

ECF

CMOD

0xD9

WDTE

* Only for Module 4

Reset

Write to

CCAPnL

Write to

CCAPnH

CCF2

CCF1

CCF0

CCF3

CCF4
