67 / 86 page

Rev. F - 15 February, 2001

T89C51RD2

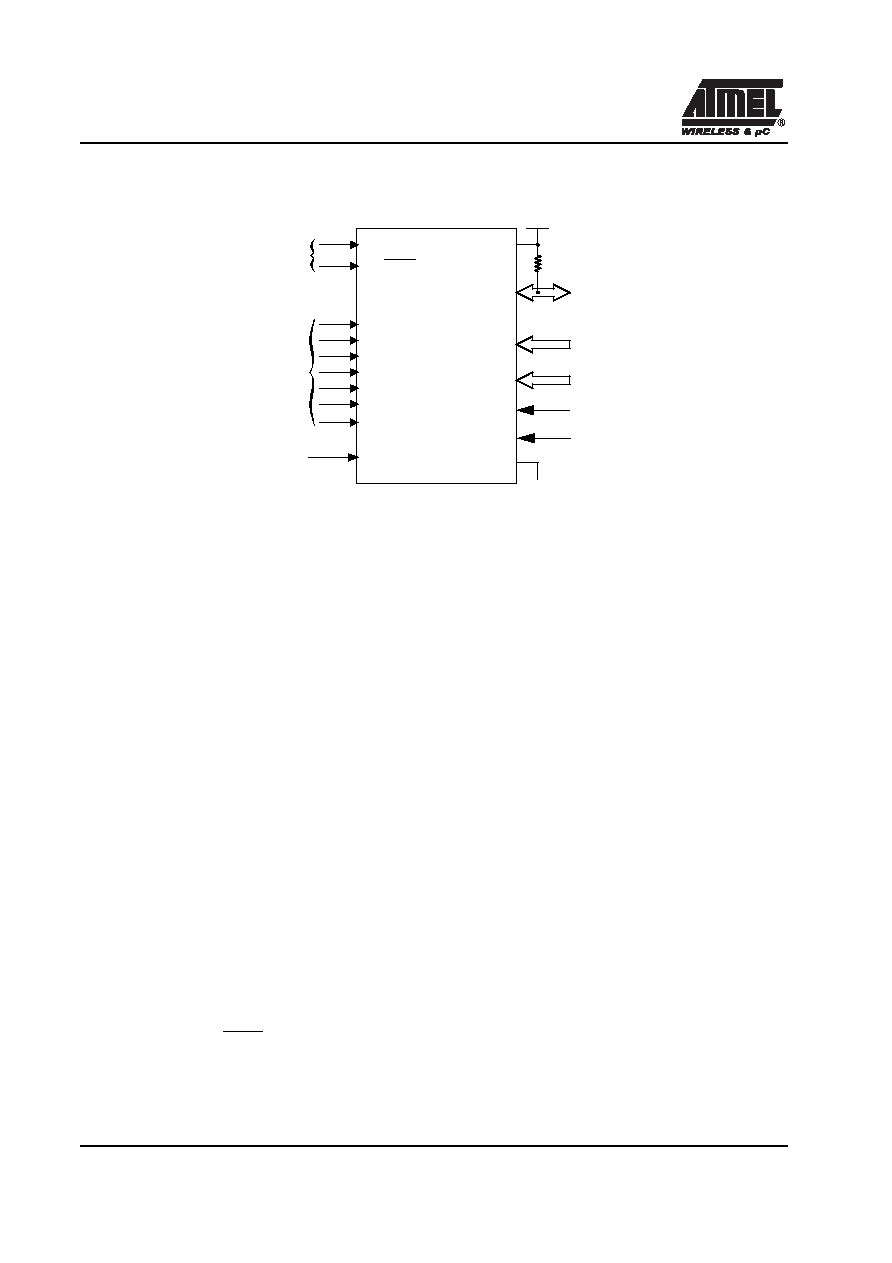

Figure 22. Set-Up Modes Configuration

8.9.4. Programming Algorithm

To program the T89C51RD2 the following sequence must be exercised:

• Check the signature bytes

• Check the HSB (VSB mode)

If the security bits are activated, the following commands must be done before programming:

• Unlock test modes (PEULCK mode, pulse 55h and AAh)

• Chip erase (CERR mode)

• Write FFh in the HSB (PGMS mode)

• Write the signature bytes content in the XAF

• As the boot loader and the XAF content is lost after a "chip erase", it must be reprogrammed if needed.

• Disable programming access (PELCK mode)

To write a page in the FLASH memory, execute the following steps:

• Step 0: Enable programming access (PEULCK mode)

• Step 1: Activate the combination of control signals (PGML mode)

• Step 2: Input the valid address on the address lines (High order bits of the address must be stable during the

complete ALE low time)

• Step 3: Activate the combination of control signals (PGML mode)

• Step 4: Input the appropriate data on the data lines.

• Step 5: Pulse ALE/PROG once.

Repeat step 2 through 5 changing the address and data for end of a 128 bytes page

• Step 6: Enable programming access (PEULCK mode)

• Step 7: Activate the combination of control signals (PGMC mode)

+5V

VCC

P0.0-P0.7

P1.0-P1.7

P2.0-P2.5

VSS

GND

D0-D7

A0-A7

A8-A13

RST

ALE/PROG

PSEN

P2.6

P2.7

P3.3

P3.7

P3.6

XTAL1

4 to 6 MHz

CONTROL

SIGNALS*

PROGRAM

SIGNALS*

P3.4

A14

P3.5

A15
