DocID030181 Rev 2

73/99

AN4989

Debug through hardware exploration

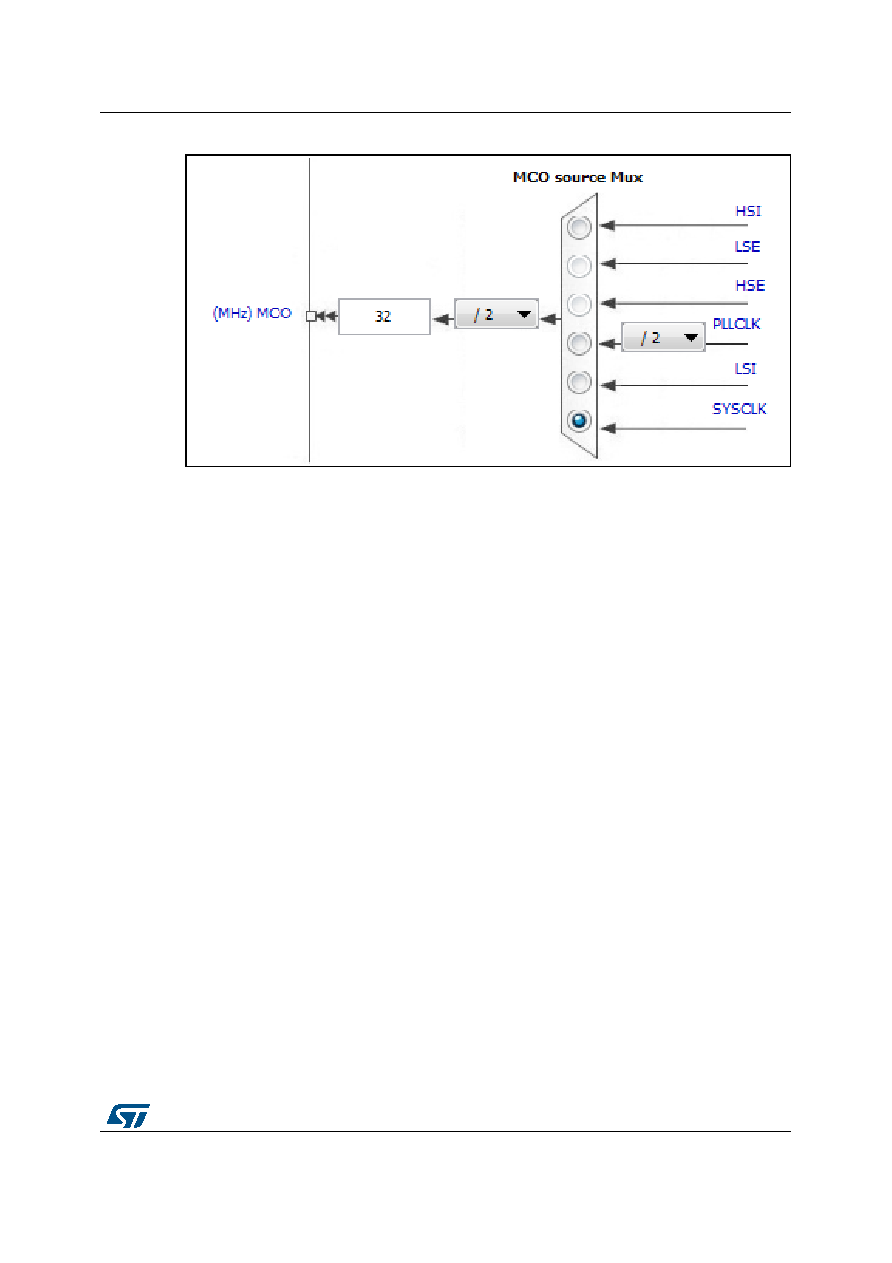

Figure 54. MCO Multiplexer in STM32CubeMX Clock Configuration Pane

The divider allows to output a signal frequency compatible with output capabilities.

8.2.2

HAL_RCC_MCOConfig

Independantly of the fact that STM32CubeMX is used or not, MCO configuration is done

using the hal_rcc or LL function:

stm32XXxx_hal_rcc.c/ stm32XXxx_hal_rcc.h

void HAL_RCC_MCOConfig( uint32_t RCC_MCOx, uint32_t RCC_MCOSource, uint32_t

RCC_MCODiv)

Examples based on LL drivers are available in STM32Cube libraries (refer to

STM32CubeProjectList.html) which configure the GPIO and the related registers depending

on source and divider.

They also configure the selected GPIO accordingly:

/* Configure the MCO1 pin in alternate function mode */

GPIO_InitStruct.Pin = MCO1_PIN;

GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;

GPIO_InitStruct.Speed = GPIO_SPEED_HIGH;

GPIO_InitStruct.Pull = GPIO_NOPULL;

GPIO_InitStruct.Alternate = GPIO_AF0_MCO;

HAL_GPIO_Init(MCO1_GPIO_PORT, &GPIO_InitStruct);

Caution:

The setting of GPIO speed (OSPEED) must be carefully set.

OSPEED setting and maximum output frequency value are described in the datasheet of

the related MCU in chapter I/O port characteristics.

Max Frequency values are given for a typical load of 50 pF or 10 pF.

If the measure is performed with an oscilloscope, the load of the probe circuitry must be

taken into account.
