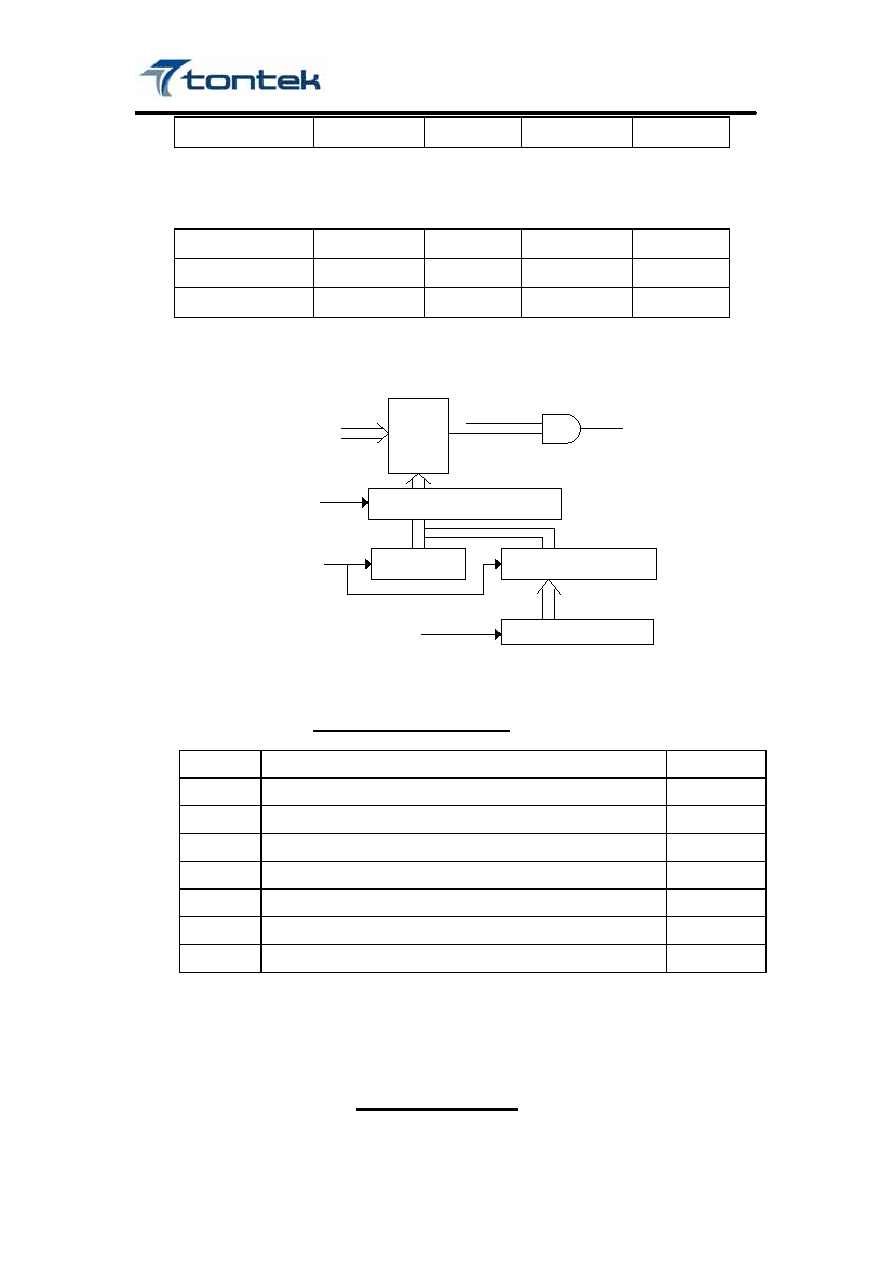

TTP259-ASFN datasheet(40/81 Pages) TONTEK

40 / 81 page

Preliminary

TTP259

TonTouch

2015/05/25

Page 40 of 81

Ver: 1.1

Read/Write

R/W

PWM2D7~PWM2D4: PWM2 duty middle nibble data.

PWM2H[22FH]: PWM2 duty high nibble data register [R/W], default value [xxxx]

Bit3

Bit2

Bit1

Bit0

Bit Name

PWM2D11

PWM2D10

PWM2D9

PWM2D8

Read/Write

R/W

PWM2D11~PWM2D8: PWM2 duty high nibble data.

TC P2 C N T

Du ty

CM P

PW M x E N

PW M x

4-bit du ty L

8-bit du ty M and H

T M P du ty M and H

PW M x L

PW M x H

an d

PW M x M

PW M x O

12-bit du ty

TC P2 O V

PWMxD

PWM duty

Note

(0 * clock cycle) / TCP2 timer’s period

All off

(1 * clock cycle) / TCP2 timer’s period

(2 * clock cycle) / TCP2 timer’s period

……

((n) * clock cycle) / TCP2 timer’s period

……

TCP2D

((TCP2D) * clock cycle) / TCP2 timer’s period

All on

Note: 1. PWMxD can not bigger than TCP2D

2. TCP2 timer’s period = (TCP2D) * clock cycle.

3. PWM can start 0 or start 1 by mask option.

Table: PWM duty

Figure: PWM (TCP2)
