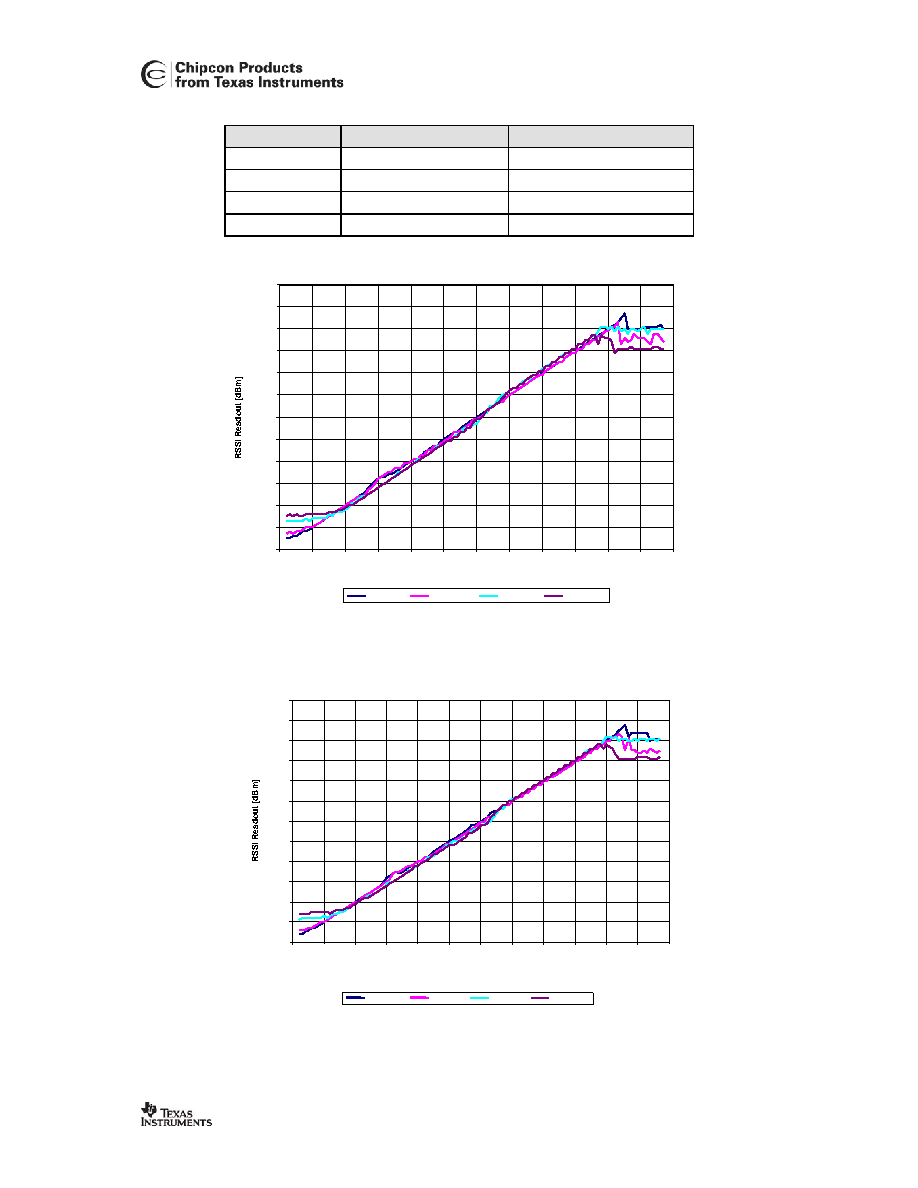

CC1100
SWRS038D
Page 38 of 92
Data rate [kBaud]
RSSI_offset [dB], 433 MHz
RSSI_offset [dB], 868 MHz
1.2
75
74
38.4
75
74
250
79
78
500
79
77
Table 25: Typical RSSI_offset Values
Figure 13: Typical RSSI Value vs. Input Power Level for Different Data Rates at 433 MHz
Figure 14: Typical RSSI Value vs. Input Power Level for Different Data Rates at 868 MHz
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
Input Power [dBm]
1.2 kBuad
38.4 kBaud
250 kBaud
500 kBaud
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
Input Power [dBm]
1.2 kBaud
38.4 kBuad
250 kBaud
500 kBaud
