10 Detailed Description
10.1 Overview
The ADS8881 is a high-speed, successive approximation register (SAR), analog-to-digital converter (ADC) from
a 16- and 18-bit device family. This compact device features high performance. Power consumption is inherently
low and scales linearly with sampling speed. The architecture is based on charge redistribution that inherently
includes a sample-and-hold (S/H) function.
The ADS8881 supports a true-differential analog input across two pins (INP and INN). When a conversion is
initiated, the differential input on these pins is sampled on the internal capacitor array. While a conversion is in
progress, both the INP and INN inputs are disconnected from the internal circuit.
The ADS8881 uses an internal clock to perform conversions. The device reconnects the sampling capacitors to
the INP and INN pins after conversion and then enters an acquisition phase. During the acquisition phase, the
device is powered down and the conversion result can be read.
The device digital output is available in SPI-compatible format, thus making interfacing with microprocessors,
digital signal processors (DSPs), or field-programmable gate arrays (FPGAs) easy.
10.2 Functional Block Diagram

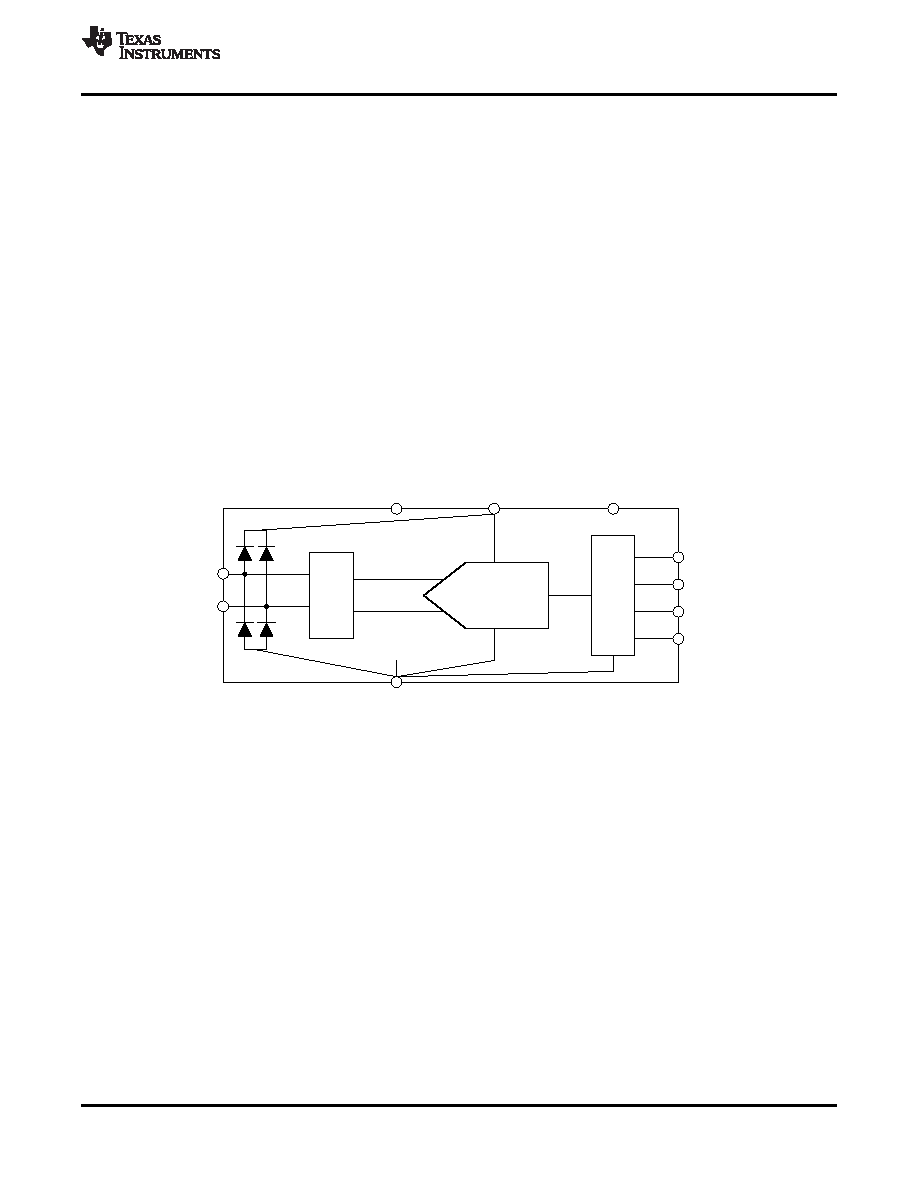

Figure 45 shows the detailed functional block diagram for the device.
Figure 45. Detailed Block Diagram
10.3 Feature Description
10.3.1 Analog Input
As shown in Figure 45, the device features a differential analog input. Both positive and negative inputs are
individually sampled on 55-pF sampling capacitors and the device converts for the voltage difference between
the two sampled values: VINP – VINN.
