ST7DALIF2
Supply, reset and clock management
37/171

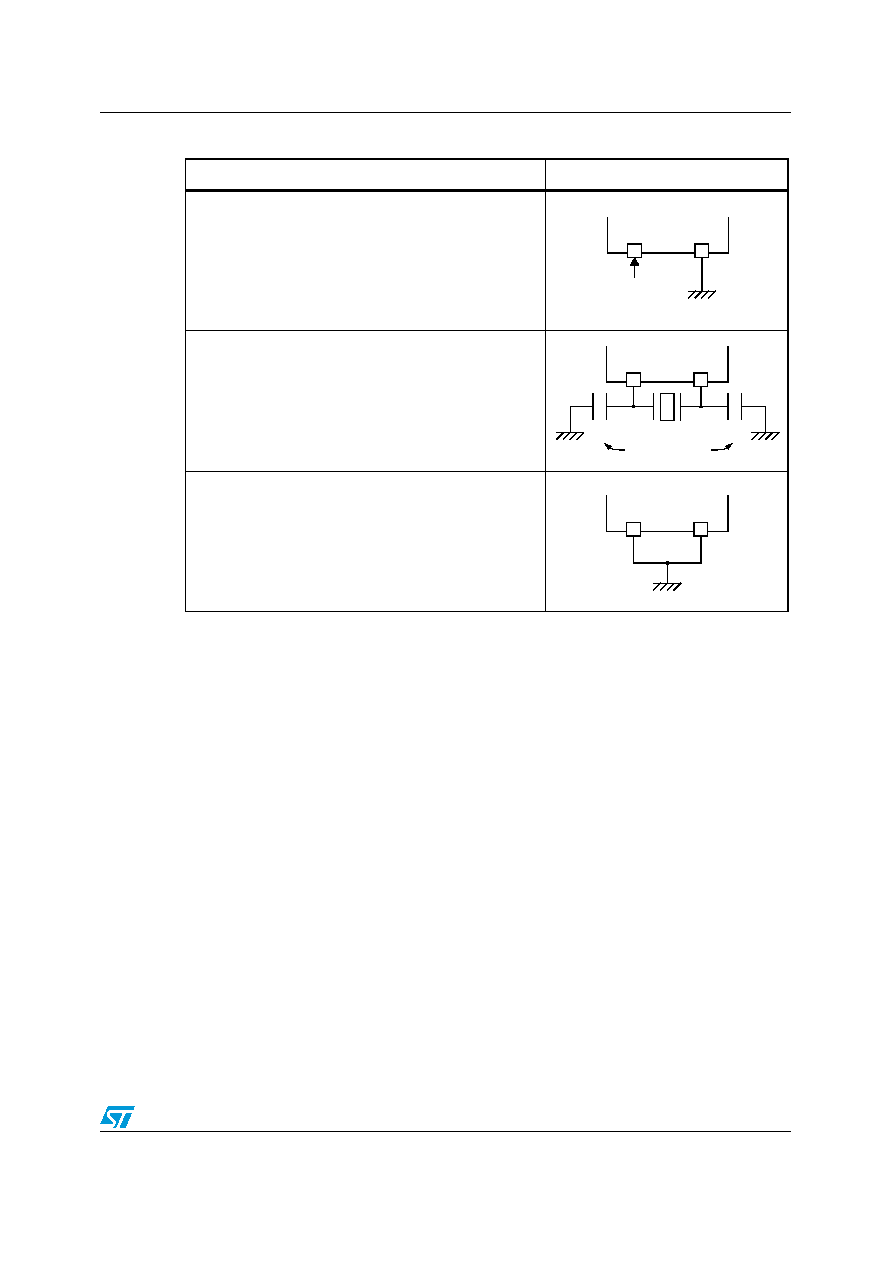

Table 10.
ST7 clock sources
Clock source
Hardware configuration
External Clock
Crystal/Ceramic Resonators
Internal RC Oscillator or
External Clock on PB4
OSC1
OSC2
EXTERNAL
ST7
SOURCE
OSC1
OSC2
LOAD
CAPACITORS
ST7
CL2
CL1
OSC1
OSC2
ST7
