Block diagram
VIPer35
6/44
DocID026980 Rev 4
1
Block diagram

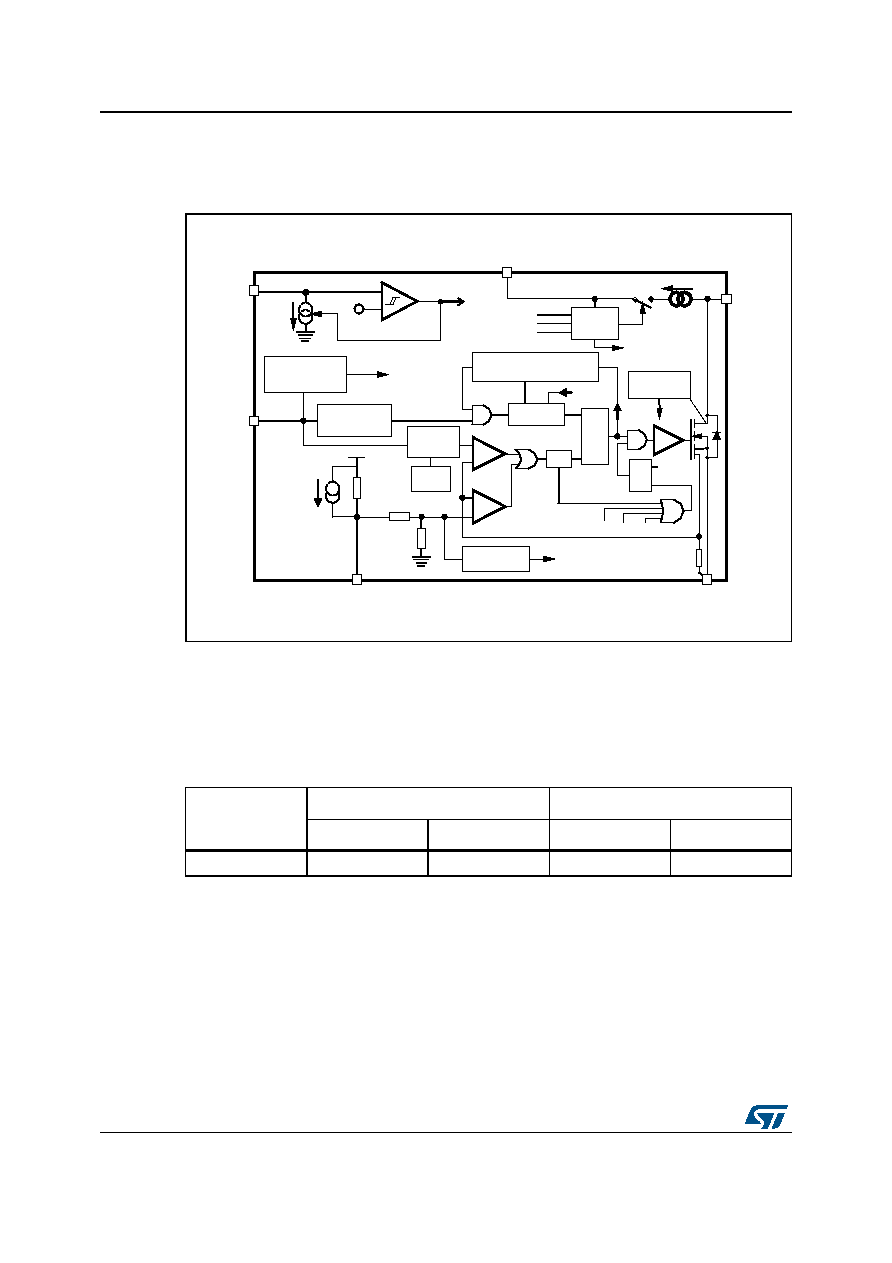

Figure 2. Block diagram
2
Typical output power
Table 1. Typical power
Part number
230 VAC
85-265 VAC
Adapter(1)
1.
Typical continuous power in non-ventilated enclosed adapter measured at 50 °C ambient.
Open frame(2)
2.
Maximum practical continuous power in an open frame design at 50 °C ambient, with adequate
heatsinking.
Adapter(1)
Open frame(2)
VIPER35
20 W
22 W
15 W
16 W
